Architectural · A-HV23K

Stone Cladding and Metal Composite Panel Plan Detail

Materials

Elements

About this detail

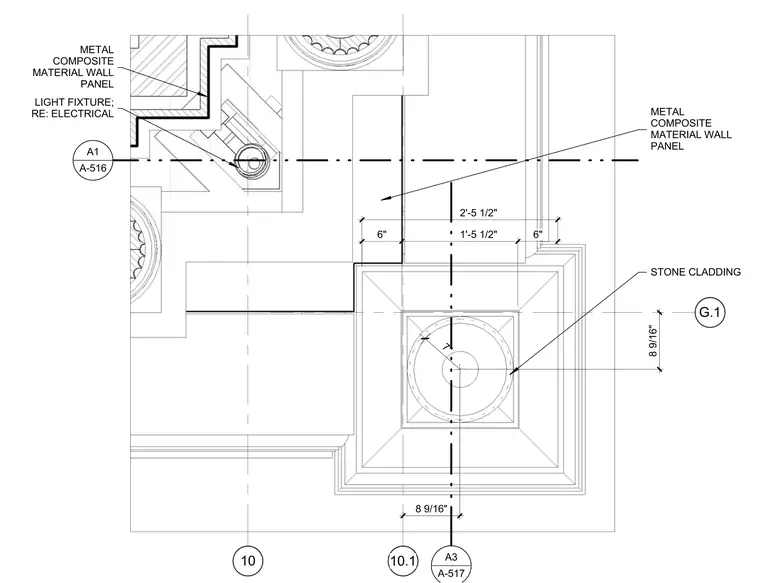

Exterior wall plan detail showing the intersection of metal composite material wall panels and stone cladding. A light fixture is coordinated at the junction with reference to electrical drawings. Dimensions locate the grid lines and component setbacks including two feet five and one-half inches, one foot five and one-half inches, six inches, seven inches, and eight and nine-sixteenths inches. Grid bubbles G.1, 10, 10.1, A1, and A3 mark the layout axes.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
