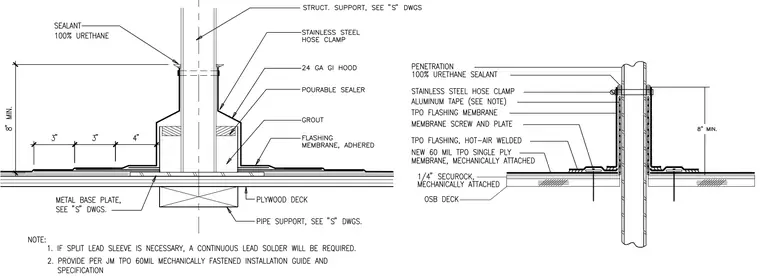

Roof pipe penetration details showing a structural support passing through an OSB or plywood deck with a minimum eight-inch clearance. The assembly includes a new sixty mil TPO single-ply membrane mechanically attached over quarter-inch Securock, with TPO flashing membrane hot-air welded and sealed with a stainless steel hose clamp, aluminum tape, and one hundred percent urethane sealant. A twenty-four gauge galvanized iron hood sits over pourable sealer and grout, supported by a metal base plate tied back to structural drawings.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
