A-HTYE8 — Transition: Low Gb To High Gb

Architectural · A-HTYE8

Transition: Low Gb To High Gb

Scale: 3" = 1'-0"
Units: imperial
Sheet: A-900
Discipline: Architectural

Materials

Cold-formed Steel Gypsum / Drywall Metal (misc.)Timber / Wood

Elements

Text on the drawing

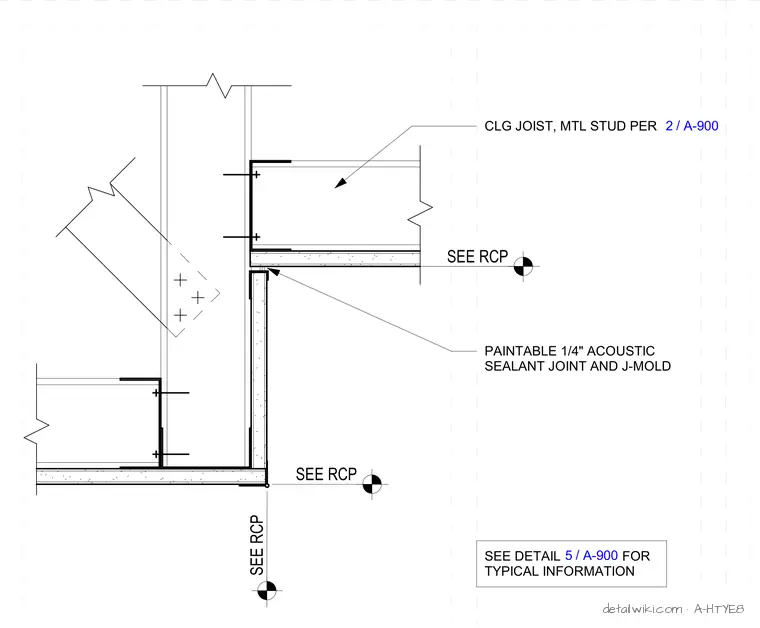

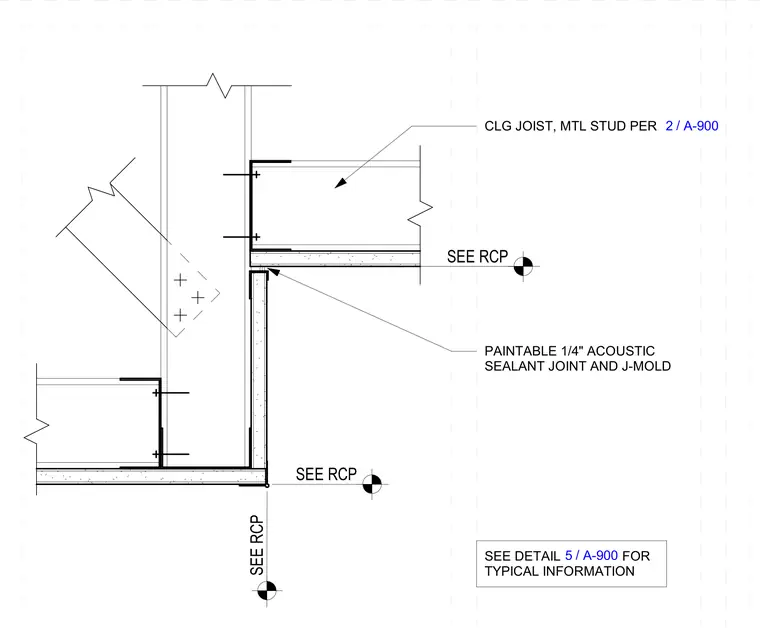

SEE RCP SEE RCP SEE RCP SEE DETAIL FOR TYPICAL INFORMATION PAINTABLE 1/4" ACOUSTIC SEALANT JOINT AND J-MOLD / 5 A-900 CLG JOIST, MTL STUD PER / 2 A-900
