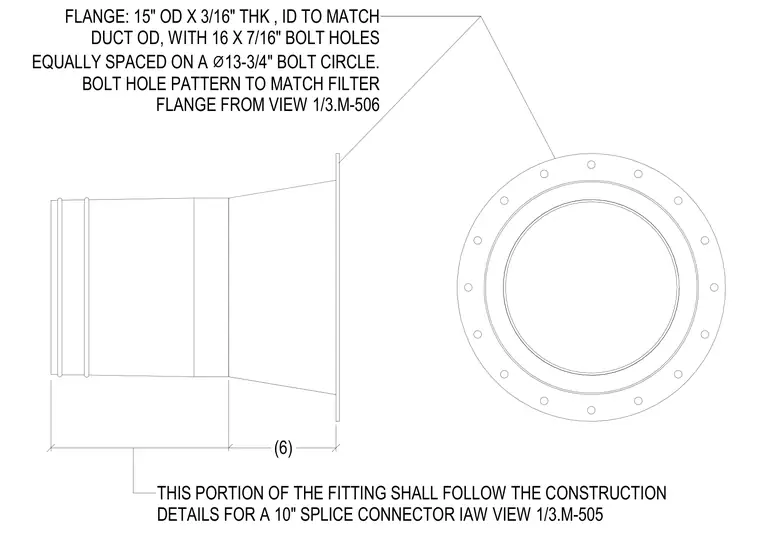

A ten-inch splice connector transitions to a flanged connection featuring a fifteen-inch outer diameter by three-sixteenths-inch thick flange. The flange incorporates sixteen seven-sixteenths-inch bolt holes equally spaced on a thirteen-and-three-quarters-inch diameter bolt circle matching the filter flange. The fitting portion follows construction details for a ten-inch splice connector in accordance with view 1/3.M-505.
(6) FLANGE: 15" OD X 3/16" THK , ID TO MATCH DUCT OD, WITH 16 X 7/16" BOLT HOLES EQUALLY SPACED ON A ⌀ 13-3/4" BOLT CIRCLE. BOLT HOLE PATTERN TO MATCH FILTER FLANGE FROM VIEW 1/3.M-506 THIS PORTION OF THE FITTING SHALL FOLLOW THE CONSTRUCTION DETAILS FOR A 10" SPLICE CONNECTOR IAW VIEW 1/3.M-505
