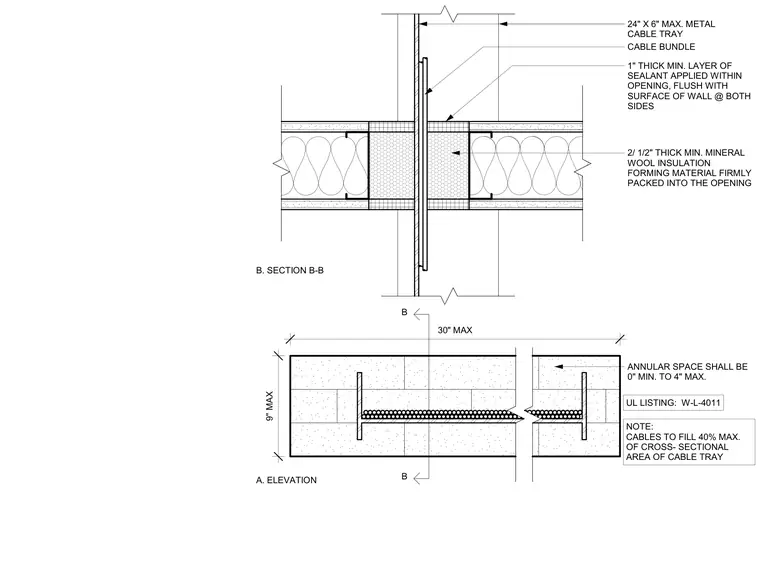

A maximum 24 inch by 6 inch metal cable tray passes through a framed partition opening with an annular space ranging from 0 inches minimum to 4 inches maximum. The opening is packed with 2 and 1/2 inches thick minimum mineral wool insulation forming material firmly packed inside. A 1 inch thick minimum layer of sealant is applied within the opening, flush with the surface of the wall at both sides. Cables are restricted to fill a maximum of 40 percent of the cross-sectional area of the cable tray in accordance with UL Listing W-L-4011.
B. SECTION B-B 2/ 1/2" THICK MIN. MINERAL WOOL INSULATION FORMING MATERIAL FIRMLY PACKED INTO THE OPENING CABLE BUNDLE UL LISTING: W-L-4011 NOTE: CABLES TO FILL 40% MAX. OF CROSS- SECTIONAL AREA OF CABLE TRAY 24" X 6" MAX. METAL CABLE TRAY ANNULAR SPACE SHALL BE 0" MIN. TO 4" MAX. 1" THICK MIN. LAYER OF SEALANT APPLIED WITHIN OPENING, FLUSH WITH SURFACE OF WALL @ BOTH SIDES A. ELEVATION B B 9" MAX 30" MAX
