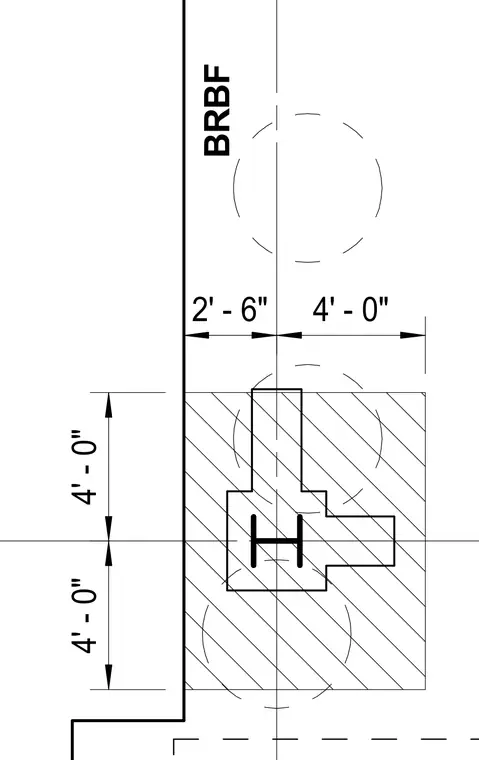

A structural column sits centered on gridlines within a stepped concrete foundation element designated for a buckling-restrained braced frame. Dimension strings establish the offsets from the column centerline to adjacent architectural or structural reference lines, spanning four feet and two feet six inches. Additional dimensioning notes the four-foot clearances surrounding the foundation pier.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
Start membership
