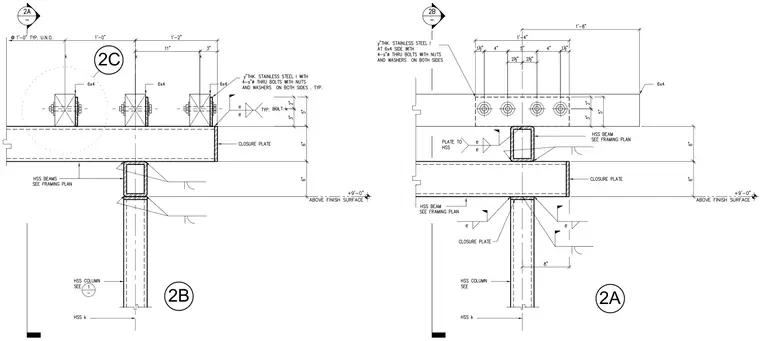

An HSS beam frames into an HSS column supporting a closure plate and a stainless steel angle. The stainless steel angle is connected with four through bolts with nuts and washers on both sides. A closure plate caps the structural steel members. Additional HSS beams are sized per the framing plan and connected using standard welds.
