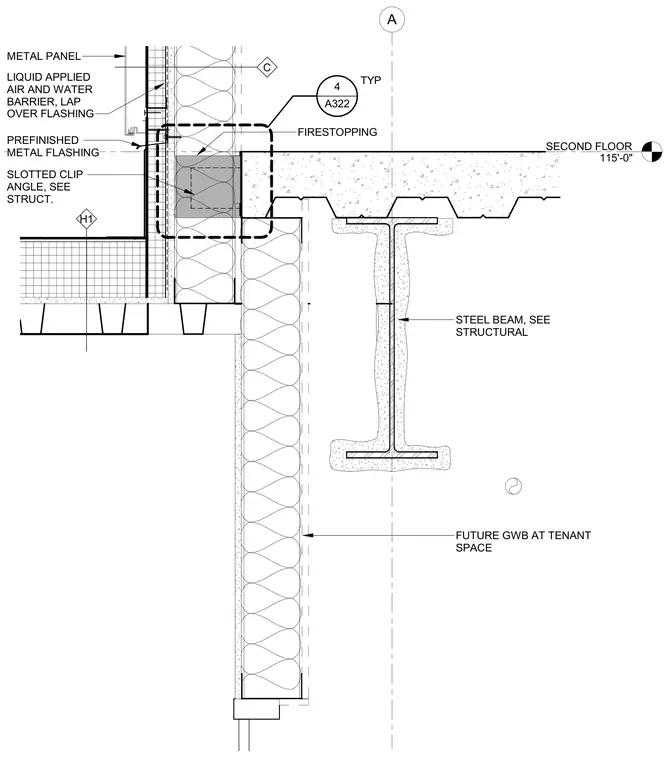

The second floor slab edge frames into an exterior metal panel wall assembly at elevation 115'-0". A structural steel beam supports the floor slab, while a slotted clip angle connects the slab edge to the exterior wall framing. Prefinished metal flashing and a liquid-applied air and water barrier are integrated at the interface, with firestopping provided at the slab edge. Future gypsum wallboard is detailed at the tenant space below.
SECOND FLOOR 115'-0" A H1 C ______________ A322 4 TYP STEEL BEAM, SEE STRUCTURAL METAL PANEL FUTURE GWB AT TENANT SPACE FIRESTOPPING SLOTTED CLIP ANGLE, SEE STRUCT. PREFINISHED METAL FLASHING LIQUID APPLIED AIR AND WATER BARRIER, LAP OVER FLASHING
