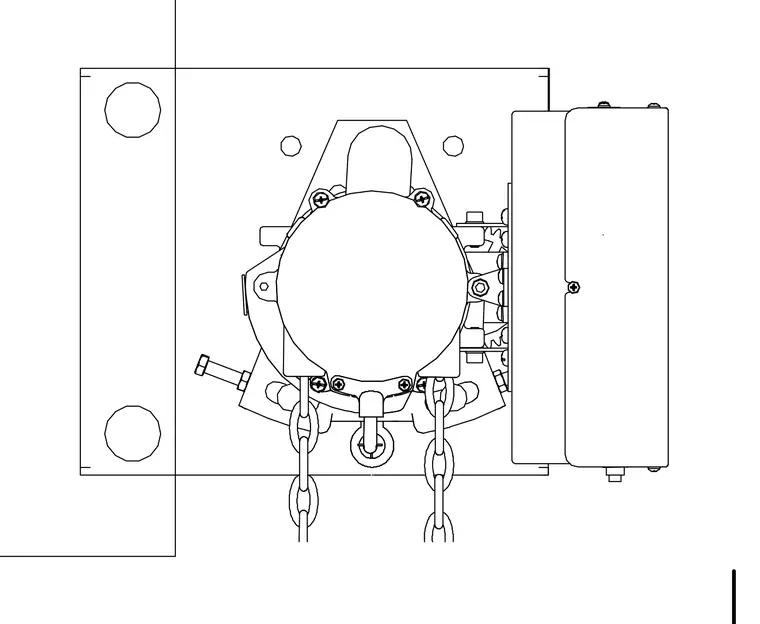

An electric motor operator with an integral manual chain hoist is mounted to a structural steel base plate. The assembly includes a control enclosure attached to the side, fastening bolts, and hanging hand chains for manual override operation.
