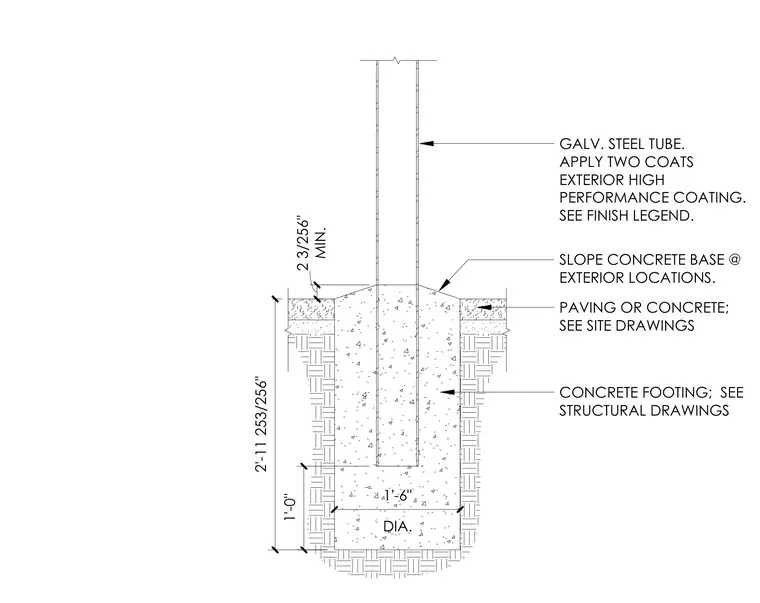

A galvanized steel tube fence post is embedded into a concrete footing sized per structural drawings, finished with two coats of exterior high-performance coating. The concrete base is sloped at exterior locations to shed water away from the post. Adjacent paving or concrete is installed per site drawings around the top of the footing.
CONCRETE FOOTING; SEE STRUCTURAL DRAWINGS 2'-11 253/256" DIA. 1'-6" PAVING OR CONCRETE; SEE SITE DRAWINGS SLOPE CONCRETE BASE @ EXTERIOR LOCATIONS. GALV. STEEL TUBE. APPLY TWO COATS EXTERIOR HIGH PERFORMANCE COATING. SEE FINISH LEGEND. MIN. 2 3/256" 1'-0"
