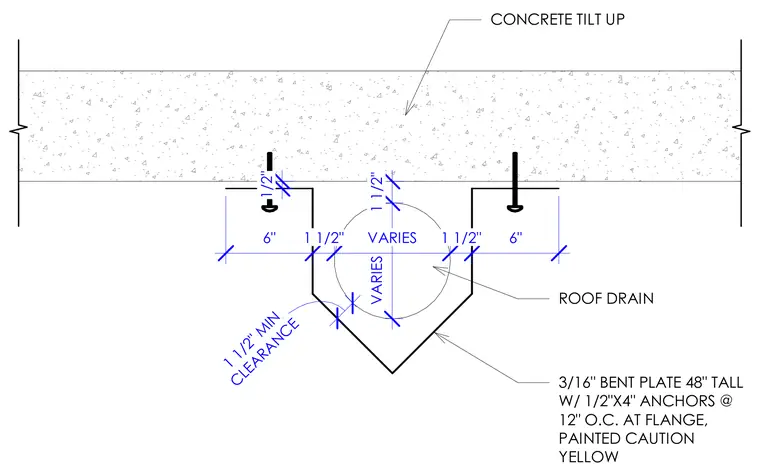

A roof drain sits adjacent to a concrete tilt-up wall, enclosed by a three-sixteenth-inch bent plate measuring forty-eight inches tall. The bent plate is secured with half-inch by four-inch anchors at twelve inches on center along the flange and is painted caution yellow. The assembly maintains a varying clearance with a one-and-a-half-inch minimum gap.
ROOF DRAIN 3/16" BENT PLATE 48" TALL W/ 1/2"X4" ANCHORS @ 12" O.C. AT FLANGE, PAINTED CAUTION YELLOW CONCRETE TILT UP VARIES 1 1/2" CLEARANCE 1 1/2" MIN 1/2" 6" 1 1/2" VARIES 1 1/2" 6"
