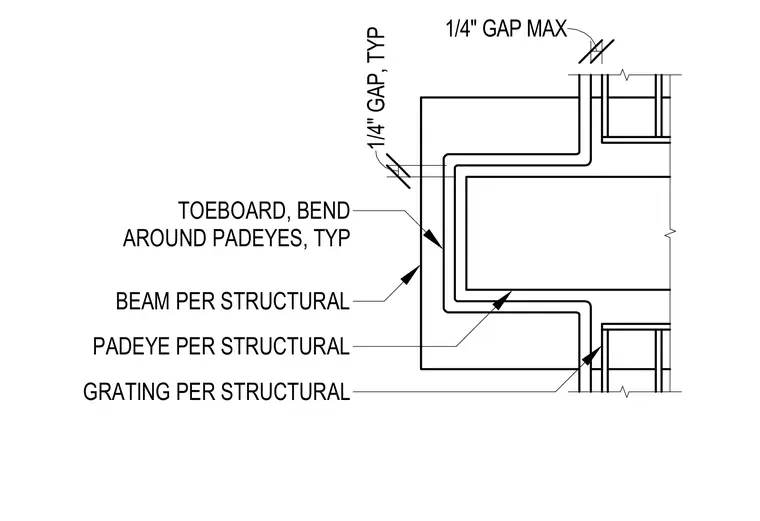

A metal toeboard is shaped to bend around structural padeyes located on a structural beam, maintaining a typical one-quarter-inch gap. Floor grating is installed adjacent to the assembly with a maximum one-quarter-inch gap.
1/4" GAP, TYP GRATING PER STRUCTURAL PADEYE PER STRUCTURAL 1/4" GAP MAX BEAM PER STRUCTURAL TOEBOARD, BEND AROUND PADEYES, TYP
