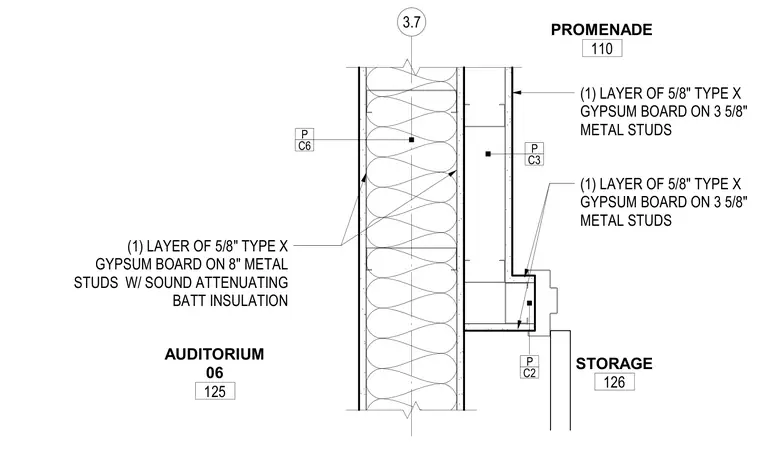

This wall corner assembly forms the boundary between auditorium 06, storage room 126, and promenade 110. The partition consists of one layer of five-eighths-inch Type X gypsum board on eight-inch metal studs with sound attenuating batt insulation. Additional partitions feature one layer of five-eighths-inch Type X gypsum board on three-and-five-eighths-inch metal studs.
3.7 C3 P C6 P C2 P (1) LAYER OF 5/8" TYPE X GYPSUM BOARD ON 8" METAL STUDS W/ SOUND ATTENUATING BATT INSULATION (1) LAYER OF 5/8" TYPE X GYPSUM BOARD ON 3 5/8" METAL STUDS (1) LAYER OF 5/8" TYPE X GYPSUM BOARD ON 3 5/8" METAL STUDS AUDITORIUM 06 125 STORAGE 126 PROMENADE 110
