Architectural · A-HT29K

Painted Aluminum Parapet Cap Detail

Materials

Steel Cold-formed Steel Timber / Wood Aluminum Metal (misc.)

Elements

Parapets Waterproofing / Flashing Connections / Plates

About this detail

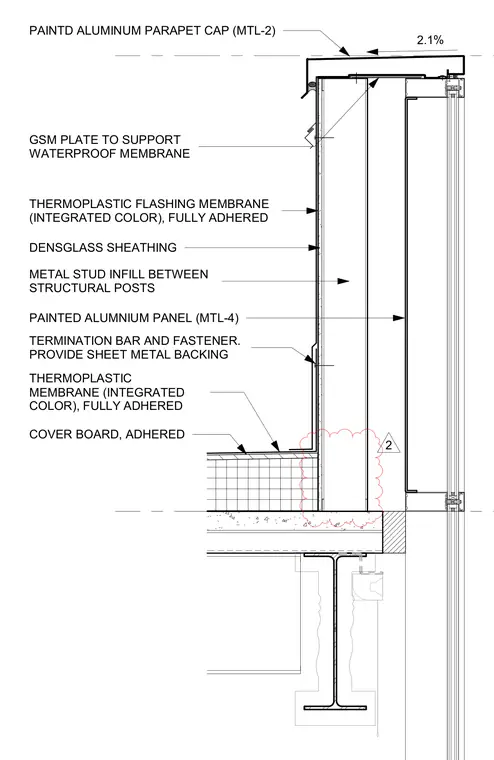

A painted aluminum parapet cap crowns the assembly with a 2.1 percent slope, sitting above a galvanized sheet metal plate that supports the waterproof membrane. The exterior face features a fully adhered integrated-color thermoplastic flashing membrane over densglass sheathing and metal stud infill between structural posts, finished with painted aluminum panels. A termination bar and fastener secure the flashing with sheet metal backing. Below, the roof assembly consists of an adhered cover board over a fully adhered thermoplastic membrane, bearing on the structural roof deck and steel framing.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
