Architectural · A-HSYXC

Light Gauge Steel Stud Wall Backing Details

Materials

Elements

Walls Doors Windows Millwork / Casework Connections / Plates

About this detail

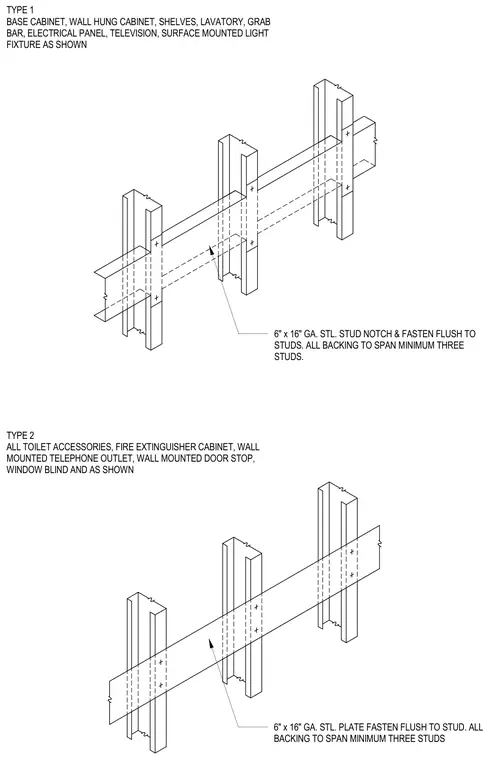

Structural backing configurations accommodate wall-hung fixtures and accessories within light gauge steel framing. Type 1 details a six-inch by sixteen-gauge steel stud notched and fastened flush to the vertical studs, providing continuous backing that spans a minimum of three studs for base cabinets, wall-hung cabinets, shelving, and heavy wall-mounted items. Type 2 details a six-inch by sixteen-gauge steel plate fastened flush across the face of the vertical studs, similarly spanning a minimum of three studs to support toilet accessories, fire extinguisher cabinets, and electrical outlets.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
