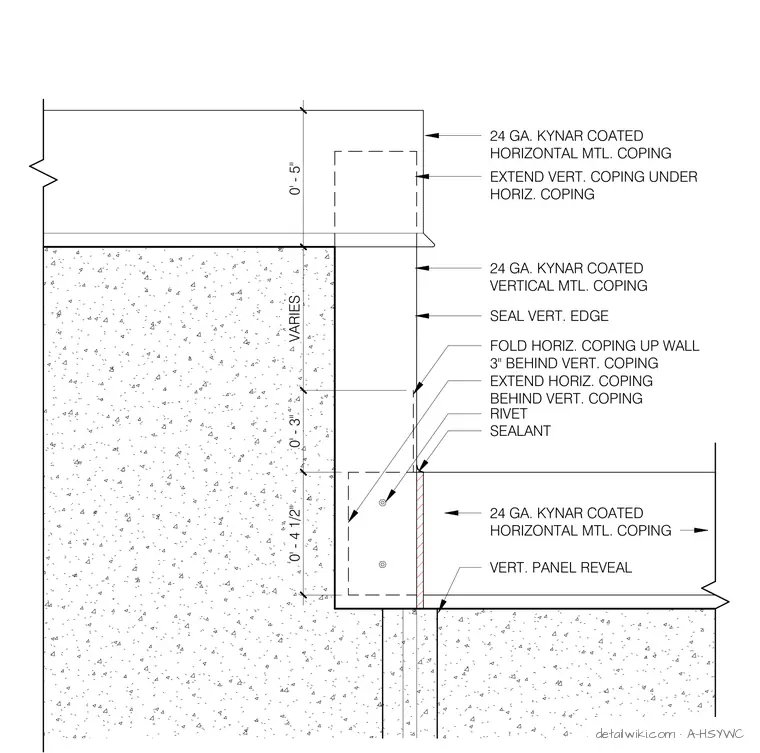

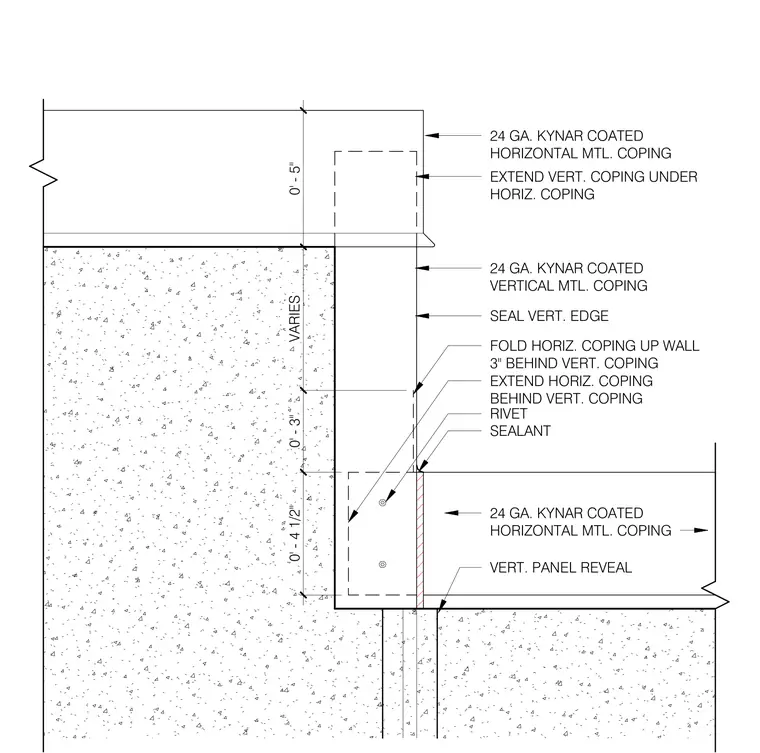

This assembly utilizes 24-gauge Kynar-coated metal coping to provide a weather-resistant cap at a wall corner. The horizontal metal coping extends behind the vertical metal coping, while the vertical coping is tucked under the horizontal coping to shed water. The horizontal coping is folded up the wall three inches behind the vertical coping to ensure a continuous moisture barrier. The vertical edge is sealed with sealant and secured with rivets to maintain the integrity of the corner junction. A vertical panel reveal is maintained at the transition point.
Text on the drawing
0' - 5" VARIES 0' - 3" 24 GA. KYNAR COATED HORIZONTAL MTL. COPING EXTEND VERT. COPING UNDER HORIZ. COPING 24 GA. KYNAR COATED VERTICAL MTL. COPING SEAL VERT. EDGE FOLD HORIZ. COPING UP WALL 3" BEHIND VERT. COPING SEALANT RIVET EXTEND HORIZ. COPING BEHIND VERT. COPING
