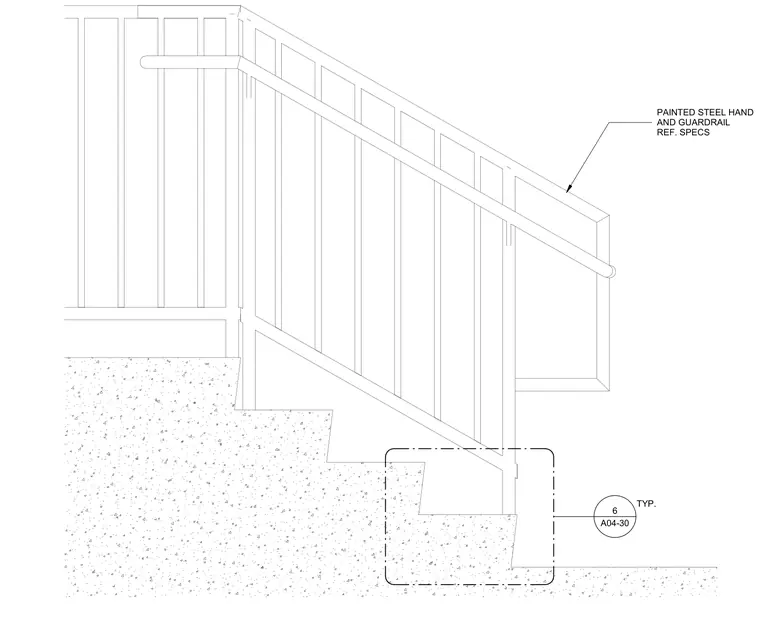

Painted steel hand and guardrail assemblies mount to exterior concrete stairs with vertical pickets and a continuous handrail. The components finish with protective paint coatings referenced in project specifications. A typical detail reference bubble directs users to sheet A04-30 for additional connection conditions.
A04-30 6 TYP. PAINTED STEEL HAND AND GUARDRAIL REF. SPECS
