Architectural · A-HSS5Q

Gate Jamb Plan Detail with HSS Post and Steel Tubing

Materials

Concrete Steel

Elements

Walls Foundations / Footings

Connections

Welded Connection

About this detail

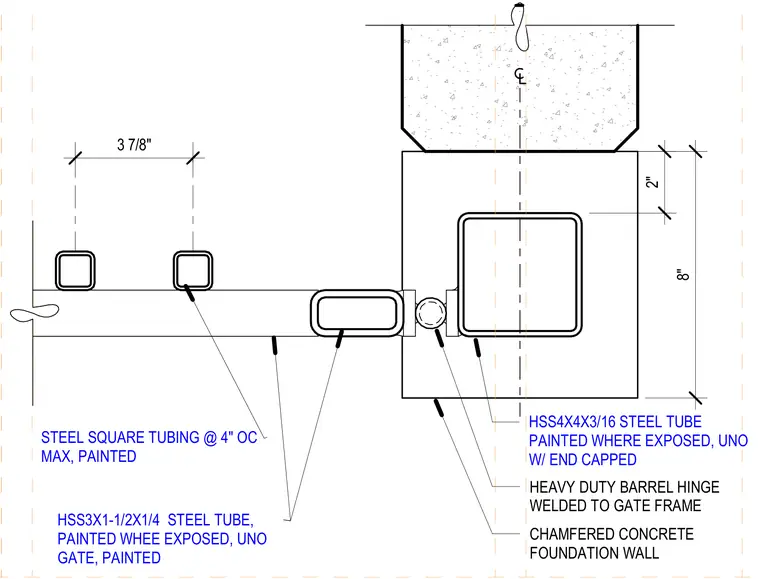

This plan detail shows a steel gate jamb assembly anchored to a chamfered concrete foundation wall. The gate post consists of an HSS 4x4x3/16 hollow structural section steel tube painted where exposed, capped at the end. A heavy-duty barrel hinge is welded to the gate frame and connects to the HSS post. The gate frame is built with an HSS 3x1-1/2x1/4 steel tube painted where exposed. Painted steel square tubing pickets are spaced at four inches on center maximum along the frame.
