Roof Penetration Boot Detail at Single-Ply Membrane

Materials

Metal (misc.)

Elements

Roofs Decks Waterproofing / Flashing Insulation Roof / Floor Openings

Connections

Welded Connection

About this detail

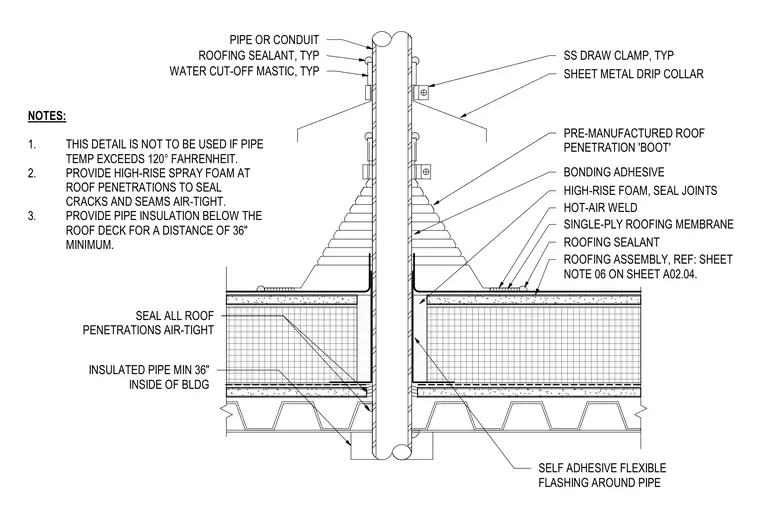

A single-ply roofing membrane transitions up a pre-manufactured roof penetration boot secured around a pipe or conduit. The assembly is sealed with bonding adhesive, high-rise spray foam at joints, hot-air welds, and roofing sealant applied over the membrane. A stainless steel draw clamp fastens a sheet metal drip collar to the pipe above the boot. Self-adhesive flexible flashing wraps the pipe at the deck level, and pipe insulation extends a minimum of thirty-six inches inside the building below the roof deck.
