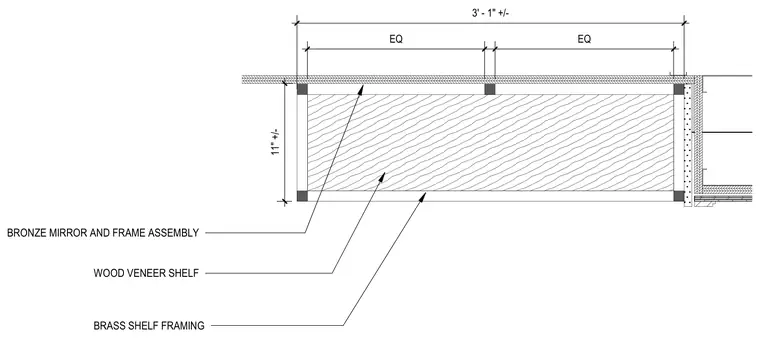

The assembly consists of a wood veneer shelf supported by brass shelf framing, backed by a bronze mirror and frame assembly. Dimensions indicate an overall length of three feet one inch with equally spaced structural divisions. The layout integrates the custom millwork elements against an adjacent wall assembly.
EQ 3' - 1" +/- 11" +/- EQ WOOD VENEER SHELF BRASS SHELF FRAMING BRONZE MIRROR AND FRAME ASSEMBLY
