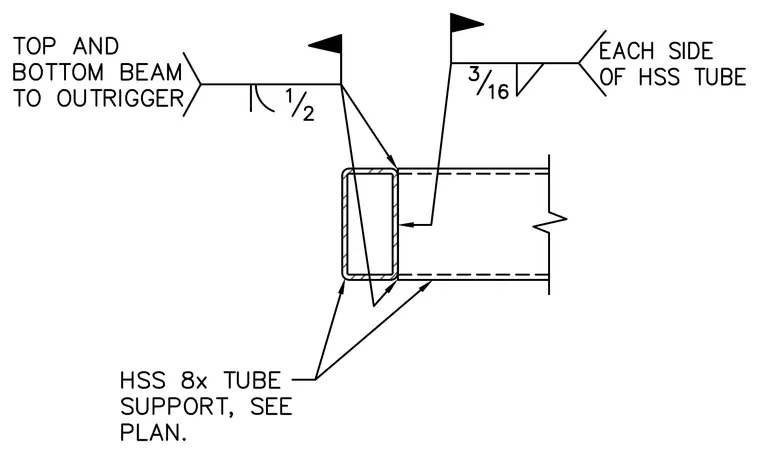

An HSS 8x tube support connects to structural beams using specified fillet welds. A one-half inch weld joins the top and bottom beam to the outrigger, while a three-sixteenths inch weld is applied to each side of the HSS tube with field weld flags indicated. The HSS tube support size is verified per plan layout.
