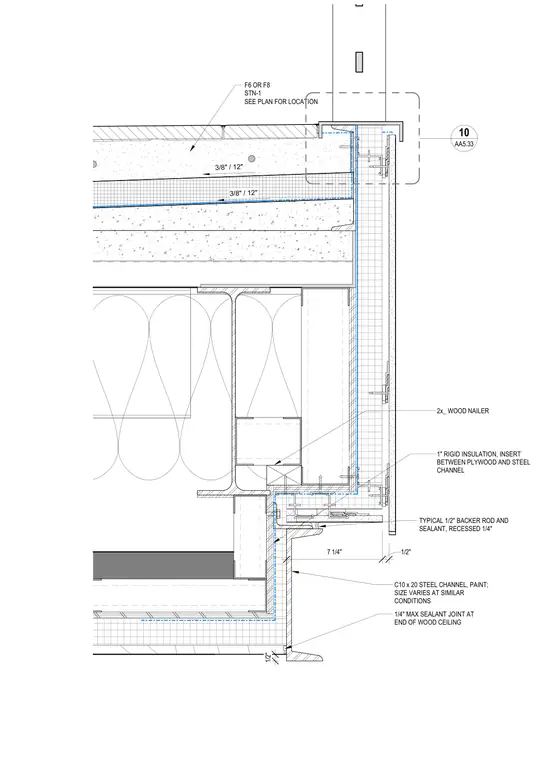

A painted C10 x 20 steel channel forms the structural fascia with variable sizing at similar conditions. One inch of rigid insulation inserts between the plywood and the steel channel alongside a two-inch wood nailer. A typical one-half-inch backer rod and sealant is recessed one-quarter inch, maintaining a one-quarter-inch maximum sealant joint at the end of the wood ceiling.
7 1/4" 1/2" 3/8" / 12" 3/8" / 12" F6 OR F8 STN-1 SEE PLAN FOR LOCATION 1/2" AA5.33 10 TYPICAL 1/2" BACKER ROD AND SEALANT, RECESSED 1/4" 1/4" MAX SEALANT JOINT AT END OF WOOD CEILING C10 x 20 STEEL CHANNEL, PAINT; SIZE VARIES AT SIMILAR CONDITIONS 1" RIGID INSULATION, INSERT BETWEEN PLYWOOD AND STEEL CHANNEL 2x_ WOOD NAILER
