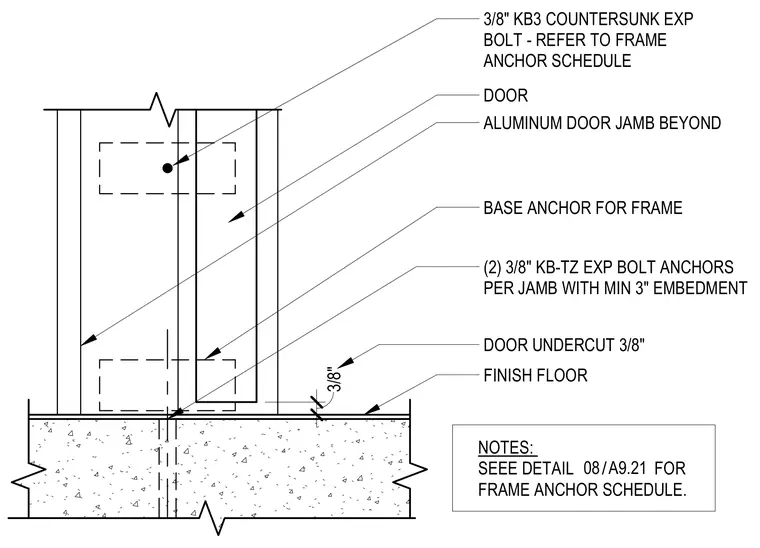

An aluminum door sill rests above a concrete finish floor with a three-eighths-inch door undercut. The aluminum door jamb beyond is anchored to the base with two three-eighths-inch KB-TZ expansion bolt anchors per jamb, requiring a minimum three-inch embedment. A three-eighths-inch KB3 countersunk expansion bolt secures the frame per the frame anchor schedule.
3/8" KB3 COUNTERSUNK EXP BOLT - REFER TO FRAME ANCHOR SCHEDULE DOOR ALUMINUM DOOR JAMB BEYOND BASE ANCHOR FOR FRAME (2) 3/8" KB-TZ EXP BOLT ANCHORS PER JAMB WITH MIN 3" EMBEDMENT FINISH FLOOR DOOR UNDERCUT 3/8" 3/8" NOTES: SEEE DETAIL FOR FRAME ANCHOR SCHEDULE. / 08 A9.21
