A recessed light fixture weighing up to fifty-five pounds is supported within a suspended acoustical ceiling grid using main runners and cross tees. Twelve-gauge lateral support wires are installed within three inches of each fixture corner and fastened to the existing structure at angles between forty-five and sixty degrees. Fixtures weighing twenty pounds or more require two additional twelve-gauge support wires connected at diagonal corners. Each connection point requires a minimum of three wire turns, with support wires supplied and installed by the ceiling contractor.

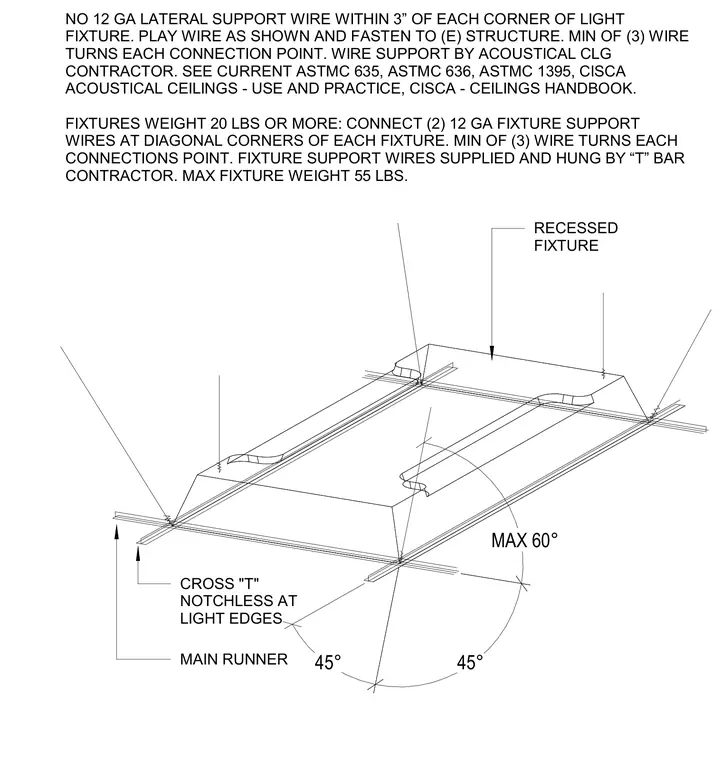

45° MAX 60° NO 12 GA LATERAL SUPPORT WIRE WITHIN 3” OF EACH CORNER OF LIGHT FIXTURE. PLAY WIRE AS SHOWN AND FASTEN TO (E) STRUCTURE. MIN OF (3) WIRE TURNS EACH CONNECTION POINT. WIRE SUPPORT BY ACOUSTICAL CLG CONTRACTOR. SEE CURRENT ASTMC 635, ASTMC 636, ASTMC 1395, CISCA ACOUSTICAL CEILINGS - USE AND PRACTICE, CISCA - CEILINGS HANDBOOK. FIXTURES WEIGHT 20 LBS OR MORE: CONNECT (2) 12 GA FIXTURE SUPPORT WIRES AT DIAGONAL CORNERS OF EACH FIXTURE. MIN OF (3) WIRE TURNS EACH CONNECTIONS POINT. FIXTURE SUPPORT WIRES SUPPLIED AND HUNG BY “T” BAR CONTRACTOR. MAX FIXTURE WEIGHT 55 LBS. 45° MAIN RUNNER CROSS "T" NOTCHLESS AT LIGHT EDGES RECESSED FIXTURE
