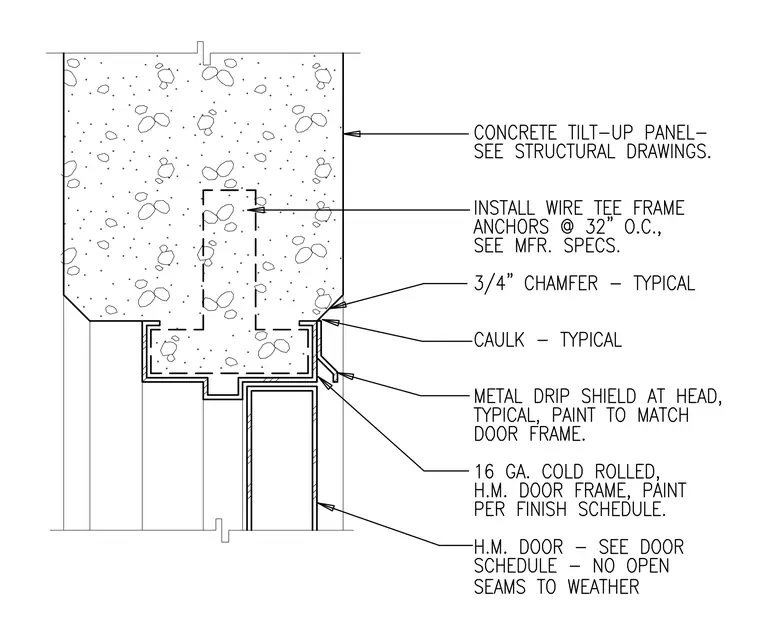

A hollow metal door frame set into a concrete tilt-up wall panel features wire tee frame anchors spaced at thirty-two inches on center. A three-quarter-inch chamfer is provided at the panel corner with sealant applied at the joint. A metal drip shield is installed at the head and painted to match the door frame. The sixteen-gauge cold-rolled hollow metal door frame and door receive finishes per the project schedules with seams sealed against weather.
