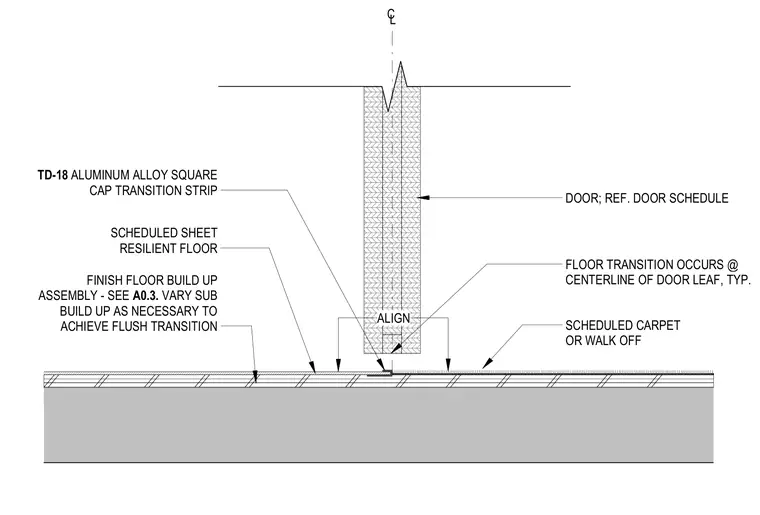

An aluminum alloy square cap transition strip occurs at the centerline of the door leaf, aligning the meeting edges of scheduled sheet resilient flooring and scheduled carpet or walk-off mat. The finish floor build-up assembly varies the sub build-up as necessary to achieve a flush transition across the flooring change.
DOOR; REF. DOOR SCHEDULE SCHEDULED CARPET OR WALK OFF FLOOR TRANSITION OCCURS @ CENTERLINE OF DOOR LEAF, TYP. C L TD-18 ALUMINUM ALLOY SQUARE CAP TRANSITION STRIP SCHEDULED SHEET RESILIENT FLOOR FINISH FLOOR BUILD UP ASSEMBLY - SEE A0.3. VARY SUB BUILD UP AS NECESSARY TO ACHIEVE FLUSH TRANSITION ALIGN
