An interior metal framing slip connection is anchored to a concrete wall panel using two-inch by two-inch by two-and-three-quarter-inch metal clips spaced at four feet on center horizontally and vertically. The metal framing is held a minimum of five-eighths of an inch from the face of the concrete wall panel. Lag screws anchor the clips to the concrete wall panel to provide a slip connection. Partition framing sizes and spacing are coordinated per the partition schedules.

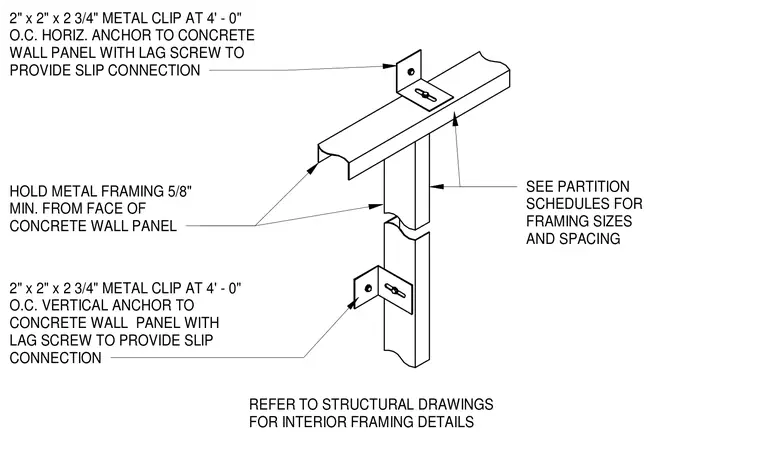

2" x 2" x 2 3/4" METAL CLIP AT 4' - 0" O.C. HORIZ. ANCHOR TO CONCRETE WALL PANEL WITH LAG SCREW TO PROVIDE SLIP CONNECTION REFER TO STRUCTURAL DRAWINGS FOR INTERIOR FRAMING DETAILS HOLD METAL FRAMING 5/8" MIN. FROM FACE OF CONCRETE WALL PANEL 2" x 2" x 2 3/4" METAL CLIP AT 4' - 0" O.C. VERTICAL ANCHOR TO CONCRETE WALL PANEL WITH LAG SCREW TO PROVIDE SLIP CONNECTION SEE PARTITION SCHEDULES FOR FRAMING SIZES AND SPACING
