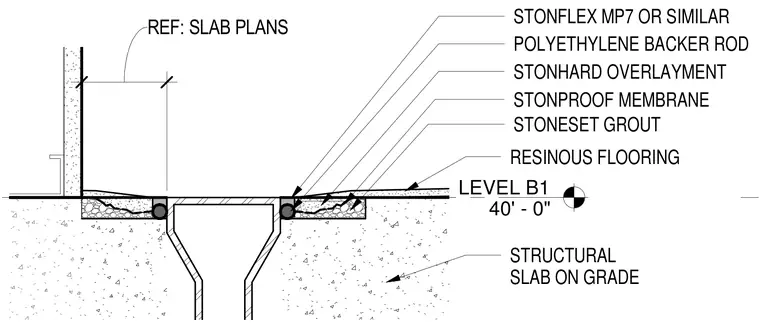

A resinous flooring transition occurs at a cleanout set into a structural slab on grade. The assembly incorporates a Stonhard overlayment over a Stonproof membrane and Stoneset grout, finished with resinous flooring. A polyethylene backer rod and Stonflex MP7 sealant or similar are installed at the cleanout joint.
LEVEL B1 40' - 0" RESINOUS FLOORING STRUCTURAL SLAB ON GRADE REF: SLAB PLANS STONFLEX MP7 OR SIMILAR POLYETHYLENE BACKER ROD STONHARD OVERLAYMENT STONPROOF MEMBRANE STONESET GROUT
