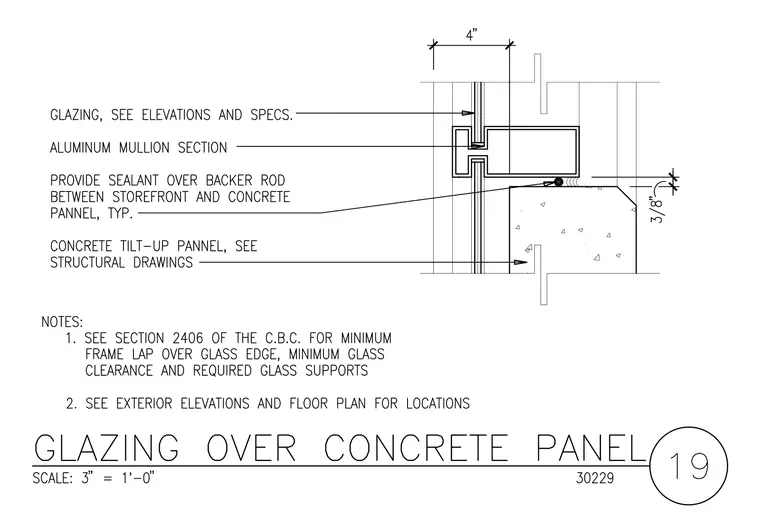

An aluminum mullion section aligns with glazing set per elevations and specifications, positioned four inches from the face. A concrete tilt-up panel supports the assembly below, leaving a three-eighths-inch gap sealed with sealant over a backer rod between the storefront and panel. Glazing installation complies with California Building Code Section 2406 for minimum frame lap, glass clearance, and supports.
