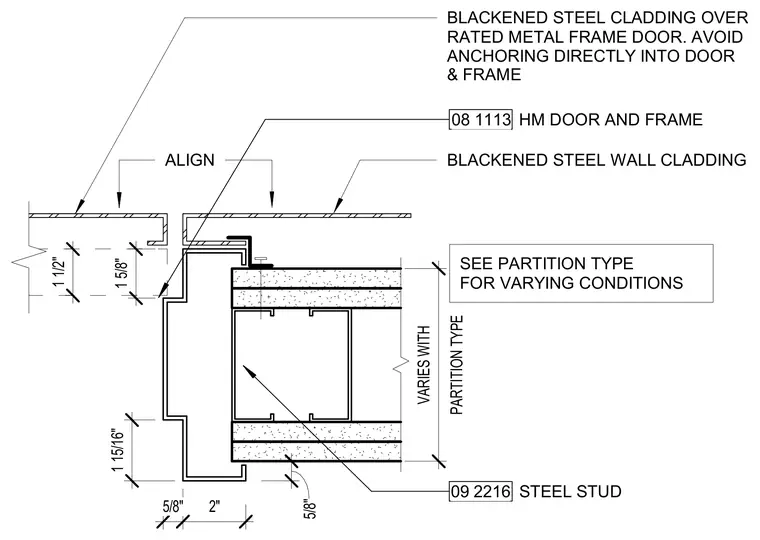

Blackened steel wall cladding finishes over a rated metal frame door assembly while maintaining alignment with adjacent surfaces. The steel studs support a gypsum board partition where partition types vary by condition. Anchoring directly into the door and frame is avoided during installation.
SEE PARTITION TYPE FOR VARYING CONDITIONS 1 15/16" PARTITION TYPE VARIES WITH 09 2216 STEEL STUD 1 1/2" 1 5/8" ALIGN 08 1113 HM DOOR AND FRAME BLACKENED STEEL CLADDING OVER RATED METAL FRAME DOOR. AVOID ANCHORING DIRECTLY INTO DOOR & FRAME BLACKENED STEEL WALL CLADDING 5/8" 5/8" 2"
