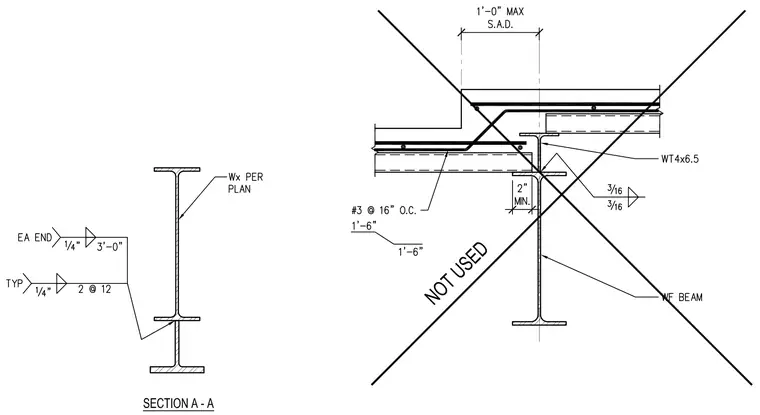

A wide flange beam sized per plan supports a stepped concrete slab assembly. The concrete slab incorporates number 3 reinforcing bars spaced at sixteen inches on center. A WT4x6.5 structural tee is integrated at the slab transition with three-sixteenths inch fillet welds. Additional welding specifications include quarter-inch welds at each end and typical locations spaced at two at twelve inches.
