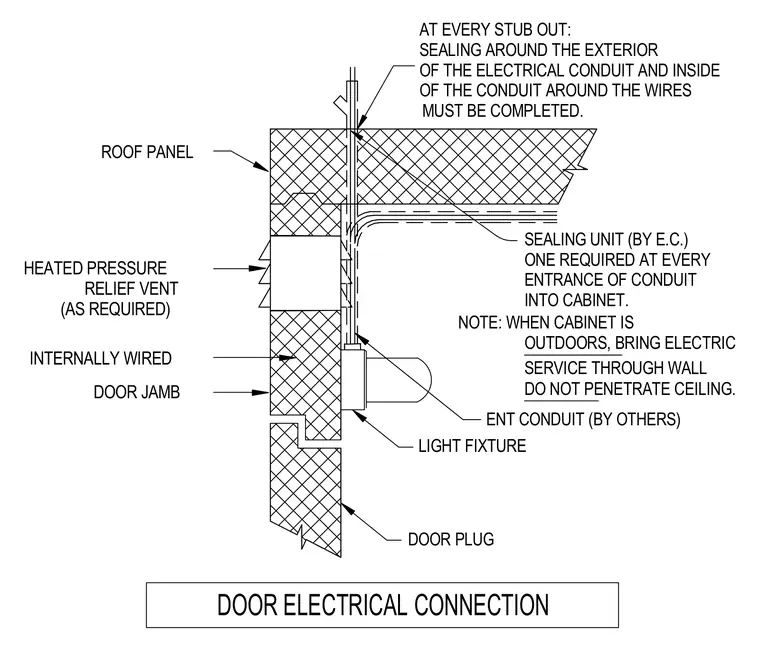

An electrical conduit enters the internally wired door jamb through the roof panel, avoiding ceiling penetration. A sealing unit is installed by the electrical contractor at every entrance of the conduit into the cabinet. At every stub out, sealing must be completed around the exterior of the conduit and inside the conduit around the wires. When the cabinet is located outdoors, electric service must be brought through the wall rather than the ceiling. A heated pressure relief vent and light fixture are integrated into the assembly.
DOOR ELECTRICAL CONNECTION DOOR JAMB INTERNALLY WIRED RELIEF VENT HEATED PRESSURE ROOF PANEL DO NOT PENETRATE CEILING. ENT CONDUIT (BY OTHERS) DOOR PLUG LIGHT FIXTURE INTO CABINET. SEALING UNIT (BY E.C.) NOTE: WHEN CABINET IS ENTRANCE OF CONDUIT OUTDOORS, BRING ELECTRIC SERVICE THROUGH WALL ONE REQUIRED AT EVERY (AS REQUIRED) SEALING AROUND THE EXTERIOR OF THE ELECTRICAL CONDUIT AND INSIDE AT EVERY STUB OUT: OF THE CONDUIT AROUND THE WIRES MUST BE COMPLETED.
