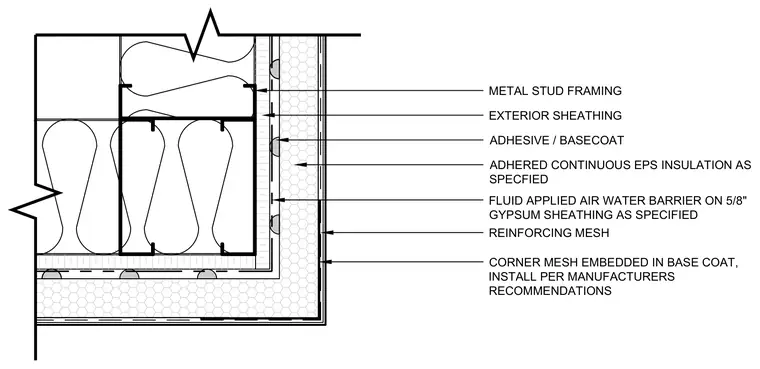

Metal stud framing supports 5/8 inch exterior gypsum sheathing finished with a fluid applied air water barrier. Adhered continuous expanded polystyrene insulation is secured with adhesive basecoat. Reinforcing mesh and corner mesh are embedded in the base coat per manufacturer recommendations.
METAL STUD FRAMING EXTERIOR SHEATHING ADHESIVE / BASECOAT ADHERED CONTINUOUS EPS INSULATION AS SPECFIED FLUID APPLIED AIR WATER BARRIER ON 5/8" GYPSUM SHEATHING AS SPECIFIED REINFORCING MESH CORNER MESH EMBEDDED IN BASE COAT, INSTALL PER MANUFACTURERS RECOMMENDATIONS
