Architectural · A-HQ64E

Expansion Joint at Exterior Wall and Aluminum Door

Materials

Concrete Reinforced Concrete Cold-formed Steel Timber / Wood Aluminum Metal (misc.)Gypsum / Drywall EIFS / Plaster / Stucco

Elements

Doors Floors / Slabs Expansion / Control Joints Waterproofing / Flashing Insulation Drainage Site / Paving Reinforcing

Connections

Expansion / Slip Connection

About this detail

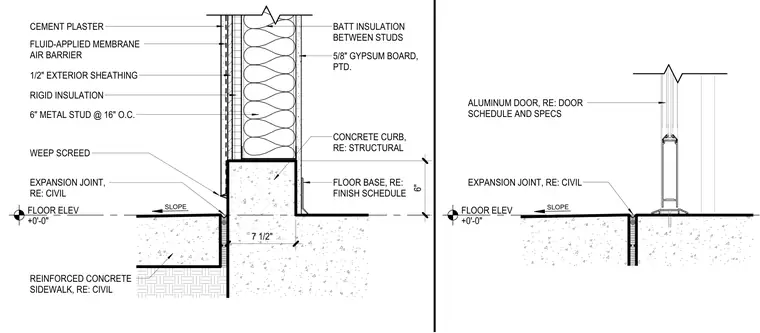

An expansion joint condition occurs between a reinforced concrete sidewalk and an exterior wall assembly, alongside an aluminum door threshold. The exterior wall consists of a cement plaster finish over rigid insulation, fluid-applied membrane air barrier, half-inch exterior sheathing, and six-inch metal studs spaced at sixteen inches on center with batt insulation and five-eighths-inch painted gypsum board on the interior. The wall meets a six-inch-by-seven-and-a-half-inch structural concrete curb featuring a weep screed and a floor base. A civil expansion joint separates the sloping concrete sidewalk from the building curb and door threshold.
