Architectural · A-HQ3K9

Elevator Cab Interior Wall and Sill Section Detail

Materials

Concrete Steel Stainless Steel Timber / Wood Stone Glass / Glazing Metal (misc.)

Elements

Doors Railings / Guards Ceilings Floors / Slabs Entrances

About this detail

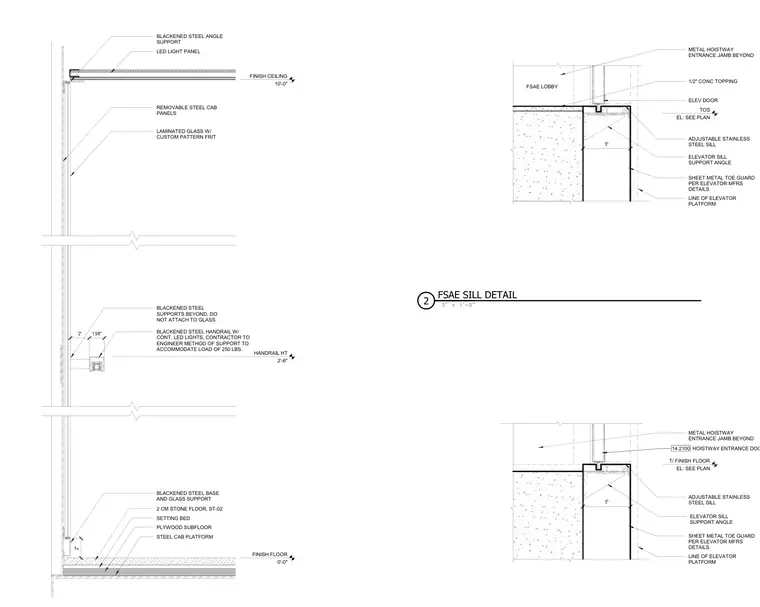

An elevator cab interior wall assembly features laminated glass with a custom pattern frit, removable steel cab panels, and a blackened steel base and glass support over a two-centimeter stone floor, setting bed, and plywood subfloor on a steel cab platform. The upper wall transitions to a blackened steel angle support carrying an LED light panel at a ten-foot finish ceiling height. At the mid-height wall, a blackened steel handrail with continuous LED lights is mounted on blackened steel supports left unattached to the glass, engineered by the contractor to accommodate a two-hundred-fifty-pound load at a height of two feet six inches. The adjacent sill detail shows the lobby concrete floor with a half-inch concrete topping meeting an adjustable stainless steel sill, an elevator sill support angle, and a sheet metal toe guard matching the elevator manufacturer details.
