A-HPZR9 — Shrub And Perennial Planting - Section Ra

Architectural · A-HPZR9

Shrub And Perennial Planting - Section Ra

Units: imperial
Sheet: RA-L2.1.1
Discipline: Architectural

Elements

Millwork / Casework Site / Paving

Text on the drawing

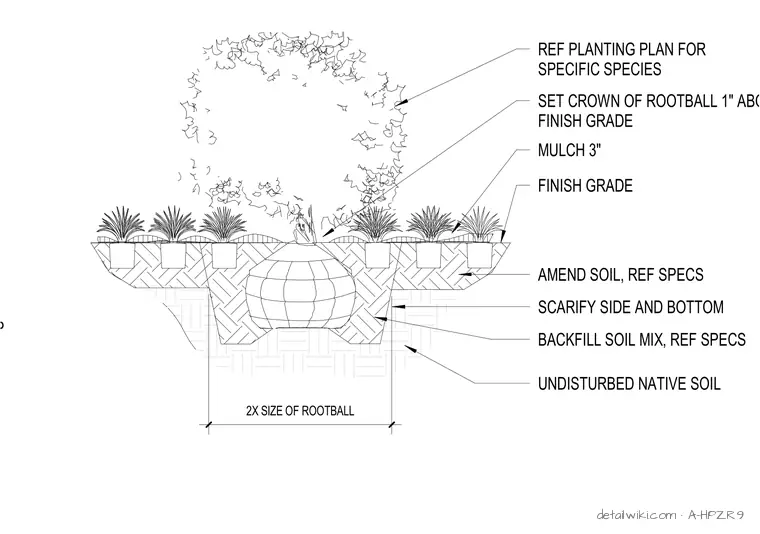

WATER IN 6" LAYERS DO NOT TAMP REF PLANTING PLAN FOR SPECIFIC SPECIES SET CROWN OF ROOTBALL 1" ABOVE FINISH GRADE MULCH 3" FINISH GRADE AMEND SOIL, REF SPECS SCARIFY SIDE AND BOTTOM 2X SIZE OF ROOTBALL UNDISTURBED NATIVE SOIL BACKFILL SOIL MIX, REF SPECS
