Architectural · A-HPZPP

Nail Fin Window Head Rainscreen

Materials

Steel Cold-formed Steel Timber / Wood Aluminum Metal (misc.)

Elements

Beams Walls Windows Facades / Cladding Waterproofing / Flashing

Connections

Welded Connection

About this detail

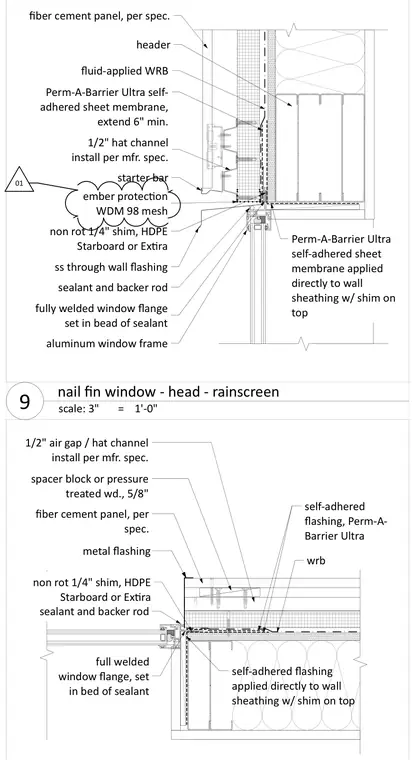

This architectural detail shows the head condition of a nail fin window integrated into a rainscreen wall assembly. An aluminum window frame features a fully welded window flange set in a bead of sealant, with a non-rot one-quarter-inch shim made of HDPE Starboard or Extira. A starter bar with ember protection WDM 98 mesh sits above the window. The wall assembly incorporates fiber cement panels over one-half-inch hat channels installed per manufacturer specifications, creating an air gap. Waterproofing layers include a fluid-applied water-resistive barrier, Perm-A-Barrier Ultra self-adhered sheet membrane extended six inches minimum, and stainless steel through-wall flashing with sealant and backer rod at joints.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
