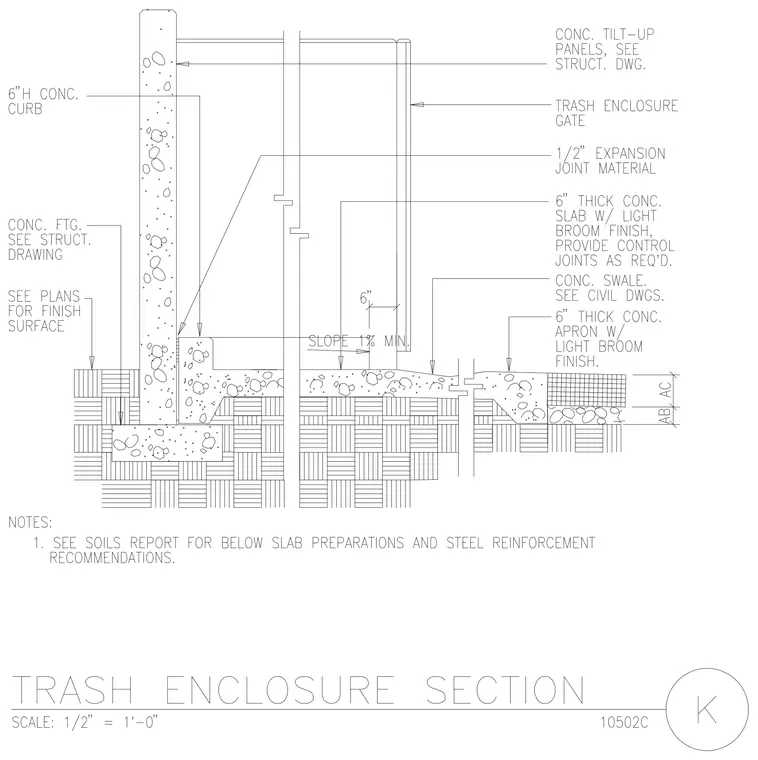

A trash enclosure section contains concrete tilt-up panels supported by a concrete footing as detailed in the structural drawings. A six-inch high concrete curb sits adjacent to a six-inch thick concrete slab with a light broom finish and required control joints. The assembly includes a trash enclosure gate, one-half-inch expansion joint material, a concrete swale, and a six-inch thick concrete apron with a light broom finish sloping one percent minimum. Below-slab preparations and steel reinforcement recommendations are governed by the soils report.
