Architectural · A-HPMCJ

Stainless Steel Ladder Side Rail and Wall Bracket Connection

Materials

Stainless Steel

Elements

Walls Waterproofing / Flashing

Connections

Welded Connection

About this detail

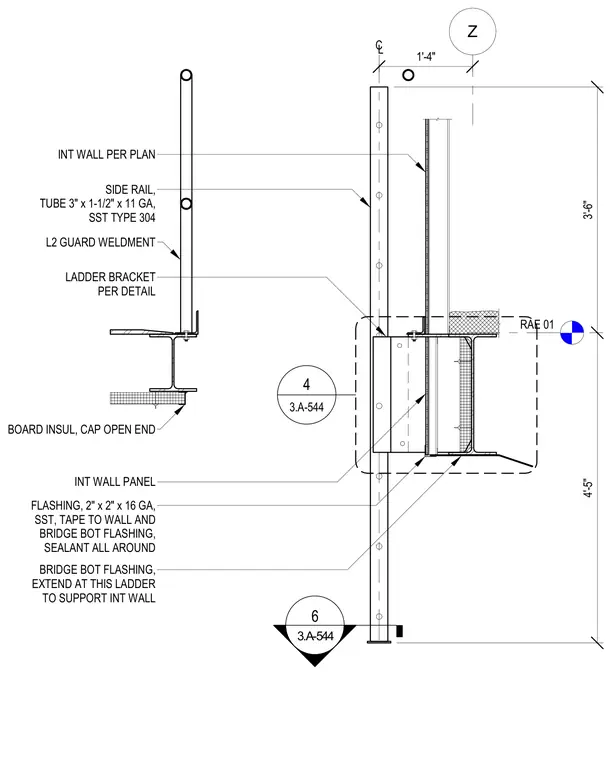

The assembly features a Type 304 stainless steel side rail fabricated from 3-inch by 1-1/2-inch by 11-gauge rectangular tubing. The ladder guard weldment is secured with a ladder bracket per detail, tying into an interior wall panel sized per plan. Waterproofing includes a 2-inch by 2-inch by 16-gauge stainless steel flashing taped to the wall and bridge bottom flashing, sealed all around with sealant. Board insulation caps the open end of the structural framing.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
