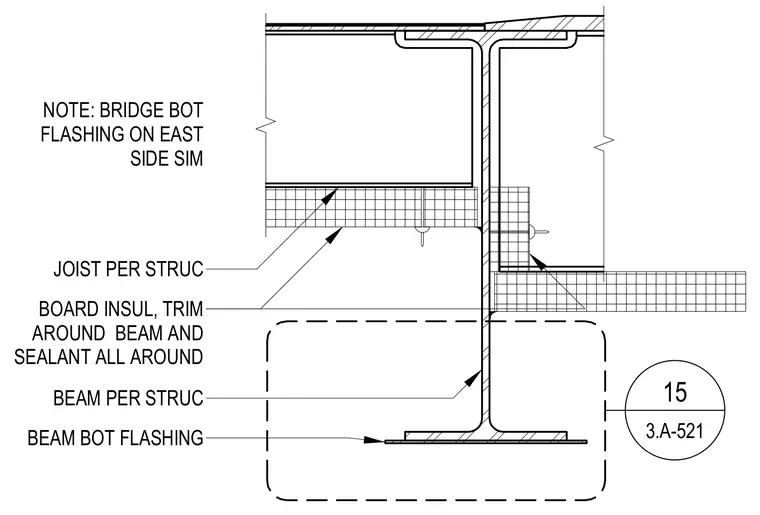

Board insulation and trim wrap the structural steel beam, sealed all around at the joints. Beam bottom flashing is installed at the underside of the structural steel beam flange. A note indicates to bridge bottom flashing on the east side similarly.
BOARD INSUL, TRIM AROUND BEAM AND SEALANT ALL AROUND JOIST PER STRUC BEAM PER STRUC BEAM BOT FLASHING 15 3.A-521 NOTE: BRIDGE BOT FLASHING ON EAST SIDE SIM
