Architectural · A-HP2ER

Exterior Wall and Expansion Joint at Projection Booth

Materials

Steel Cold-formed Steel Timber / Wood Metal (misc.)Gypsum / Drywall EIFS / Plaster / Stucco

Elements

Columns Bracing Expansion / Control Joints Waterproofing / Flashing Insulation

Connections

Expansion / Slip Connection

About this detail

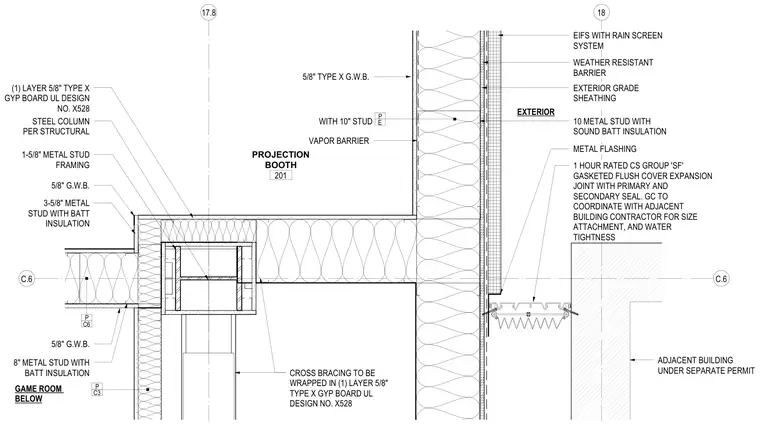

An exterior wall assembly interfaces with an adjacent building via a one-hour-rated gasketed flush cover expansion joint with primary and secondary seals. The exterior facade features an EIFS with a rain screen system, weather-resistant barrier, exterior grade sheathing, and ten-inch metal studs with sound batt insulation. The structural steel column is enclosed with one layer of 5/8-inch Type X gypsum board complying with UL Design No. X528, alongside cross bracing similarly wrapped in gypsum board. Interior partitions comprise various metal stud framing sizes, including 3-5/8-inch and 8-inch metal studs with batt insulation and 5/8-inch gypsum wallboard layers. A metal flashing is positioned near the expansion joint, with the general contractor coordinating sizing, attachment, and watertightness with the adjacent building contractor.
