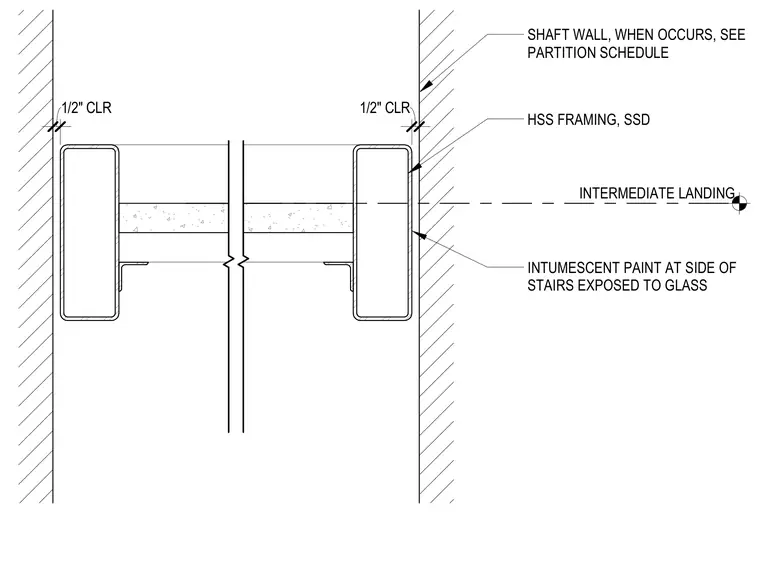

An intermediate stair landing is framed with hollow structural section members maintaining a half-inch clearance to the adjacent shaft wall. The hollow structural section framing incorporates intumescent paint applied to the side exposed to glass. A shaft wall occurs on one side per the partition schedule.
INTERMEDIATE LANDING 1/2" CLR 1/2" CLR HSS FRAMING, SSD SHAFT WALL, WHEN OCCURS, SEE PARTITION SCHEDULE INTUMESCENT PAINT AT SIDE OF STAIRS EXPOSED TO GLASS
