Three and five-eighths inch metal framing supports a three-quarter inch fire-treated plywood or approved non-combustible substrate. A weather-resistant barrier is applied over the substrate, followed by a Mitsubishi Alpolic AGT Grey aluminum composite material fascia panel installed per manufacturer specifications. The soffit features a Firestone Cityscape flush reveal system and a perforated soffit vent with an integrated bug screen. Components are mechanically fastened to the metal framing to maintain the exterior finish and ventilation requirements.

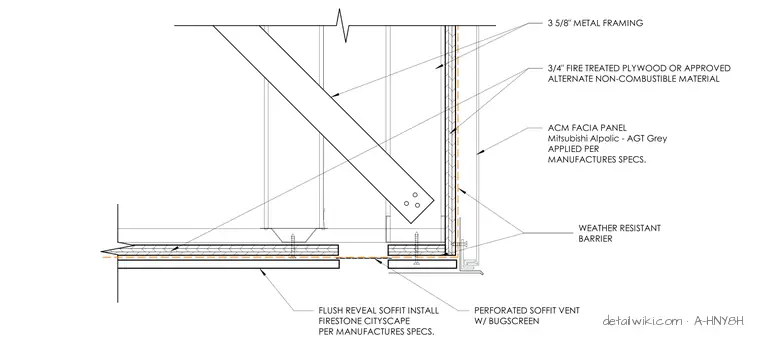

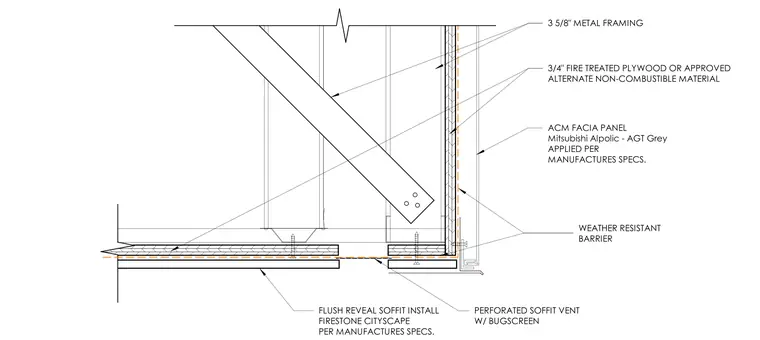

Text on the drawing
3/4" FIRE TREATED PLYWOOD OR APPROVED ALTERNATE NON-COMBUSTIBLE MATERIAL FLUSH REVEAL SOFFIT INSTALL FIRESTONE CITYSCAPE PER MANUFACTURES SPECS. 3 5/8" METAL FRAMING PERFORATED SOFFIT VENT W/ BUGSCREEN WEATHER RESISTANT BARRIER ACM FACIA PANEL Mitsubishi Alpolic - AGT Grey APPLIED PER MANUFACTURES SPECS.
