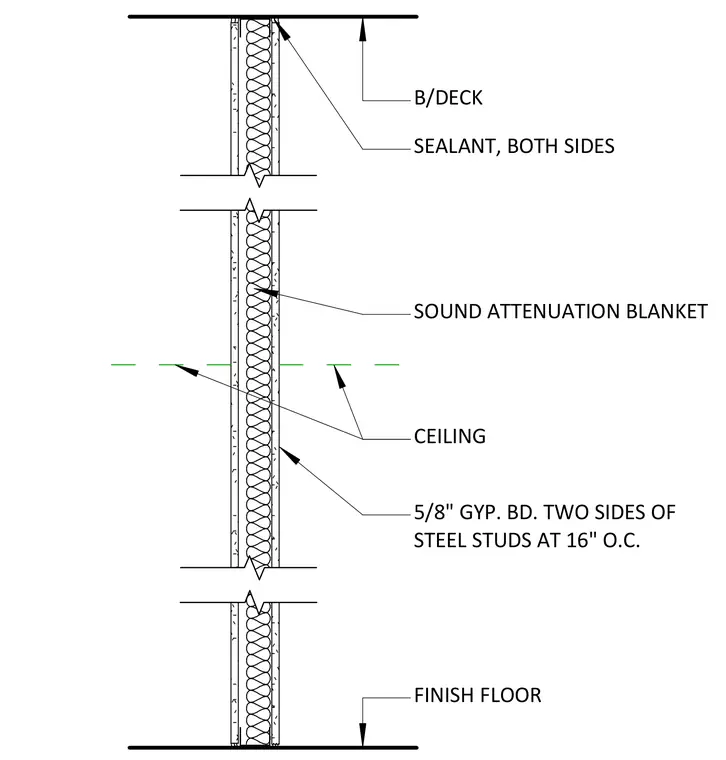

This interior partition consists of steel studs spaced at sixteen inches on center with five-eighths inch gypsum board applied to both sides. A sound attenuation blanket fills the stud cavity for acoustic control. The partition extends from the finish floor up to the metal deck overhead, with sealant applied on both sides at the deck interface.
5/8" GYP. BD. TWO SIDES OF STEEL STUDS AT 16" O.C. FINISH FLOOR CEILING B/DECK SOUND ATTENUATION BLANKET SEALANT, BOTH SIDES
