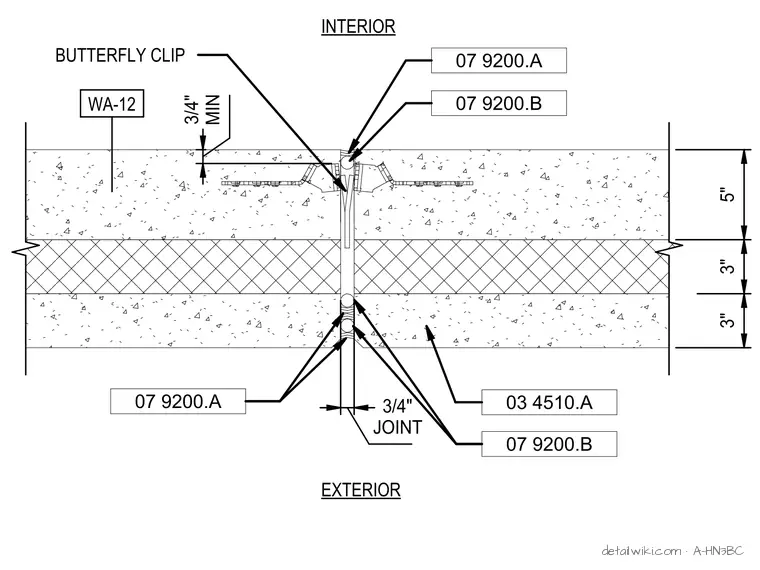

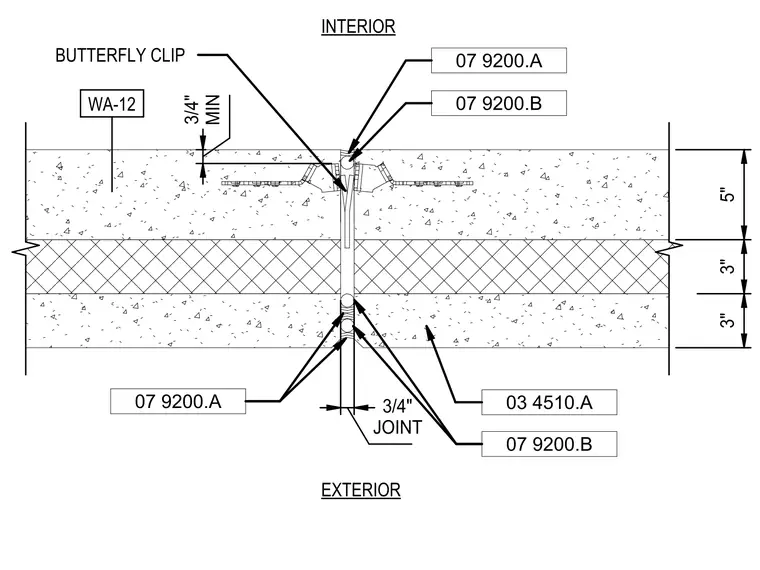

Vertical expansion joint between two insulated concrete panels, WA-12. The assembly features a 3/4-inch wide joint gap sealed at the exterior face with specified sealant materials 07 9200.A and 07 9200.B. A butterfly clip is installed at the interior side of the joint, recessed a minimum of 3/4-inch from the interior face of the concrete. The panel construction consists of a 5-inch thick concrete layer, a 3-inch insulation layer, and a 3-inch concrete layer, utilizing concrete materials 03 4510.A.
