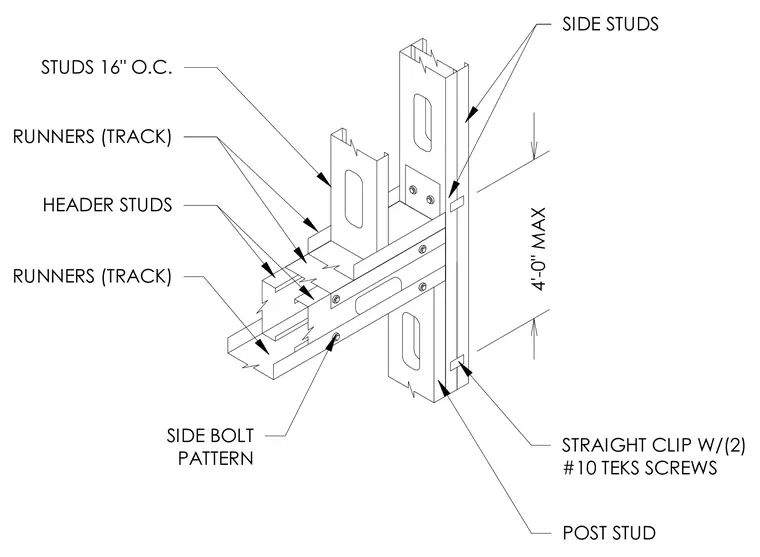

Cold-formed metal framing headers frame into vertical post studs spaced with standard runners and track sections. Header studs are tied into adjacent side studs with a specific side bolt pattern. Straight clips secured with two number 10 Teks screws anchor the assembly at a maximum four-foot vertical spacing.
STRAIGHT CLIP W/(2) #10 TEKS SCREWS 4'-0" MAX SIDE BOLT PATTERN POST STUD SIDE STUDS RUNNERS (TRACK) HEADER STUDS RUNNERS (TRACK) STUDS 16" O.C.
