Architectural · A-HMYCP

Handrail Bracket Connection at Guard Post

Materials

Steel

Elements

Columns Stairs Railings / Guards

Connections

Welded Connection

About this detail

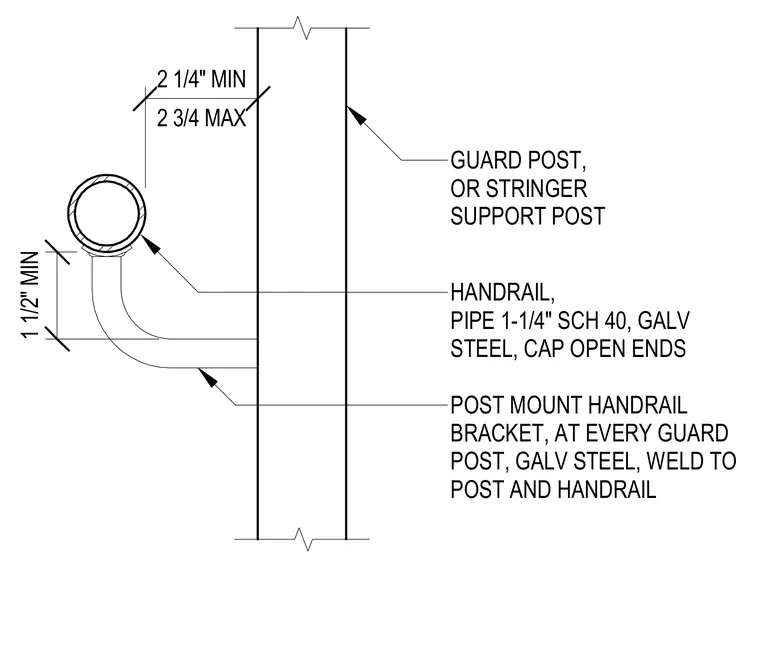

A 1-1/4 inch schedule 40 galvanized steel handrail pipe with capped open ends is supported by a post-mount handrail bracket located at every guard post. The galvanized steel bracket is welded to both the guard post or stringer support post and the underside of the handrail. Dimensions specify a minimum clearance of 1-1/2 inches below the handrail, and a spacing of 2-1/4 inches minimum to 2-3/4 inches maximum from the face of the post to the centerline of the handrail.
