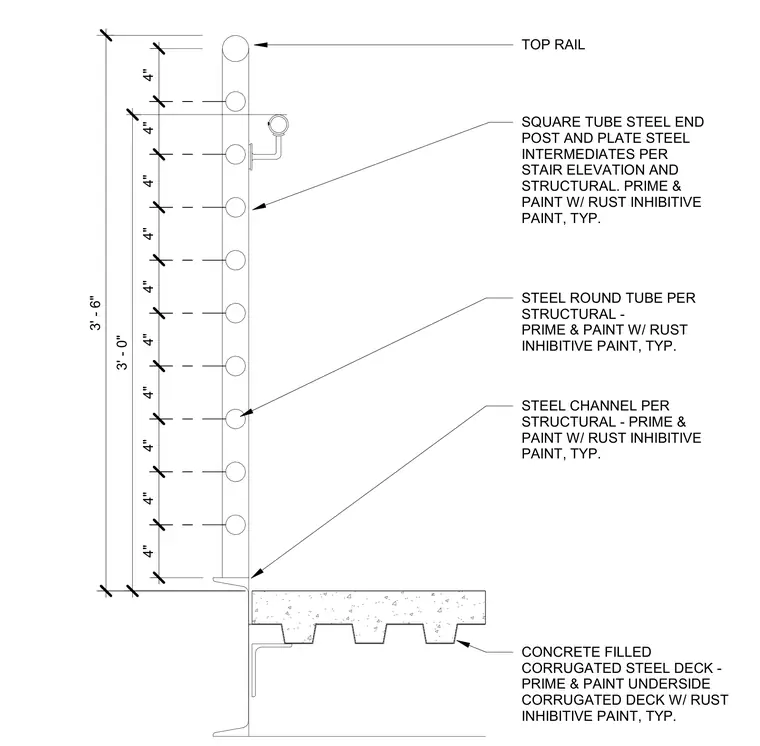

The stair guardrail assembly features a steel round tube top rail and steel round tube intermediate rails supported by a square tube steel end post and plate steel intermediates. A steel channel supports the system and ties back to the concrete-filled corrugated steel deck. All exposed steel surfaces receive a coat of prime paint with rust-inhibitive paint.
TOP RAIL STEEL ROUND TUBE PER STRUCTURAL - PRIME & PAINT W/ RUST INHIBITIVE PAINT, TYP. STEEL CHANNEL PER STRUCTURAL - PRIME & PAINT W/ RUST INHIBITIVE PAINT, TYP. CONCRETE FILLED CORRUGATED STEEL DECK - PRIME & PAINT UNDERSIDE CORRUGATED DECK W/ RUST INHIBITIVE PAINT, TYP. SQUARE TUBE STEEL END POST AND PLATE STEEL INTERMEDIATES PER STAIR ELEVATION AND STRUCTURAL. PRIME & PAINT W/ RUST INHIBITIVE PAINT, TYP. 3' - 6" 4" 4" 4" 4" 4" 4" 4" 4" 4" 4" 3' - 0"
