Architectural · A-HMBF8

Tactile Exit Sign

Materials

Elements

About this detail

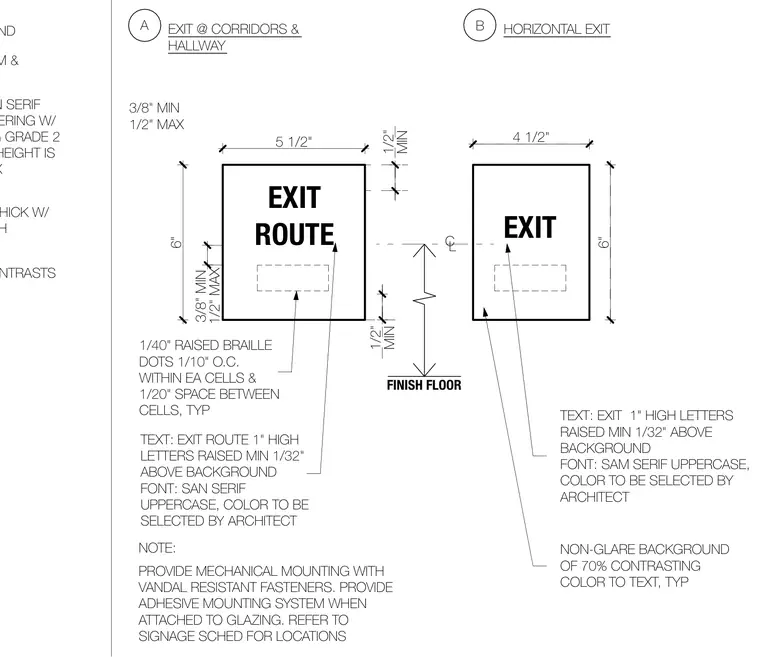

Tactile exit signs feature a non-glare background contrasting at seventy percent with white pictograms and uppercase san serif lettering raised a minimum of one-thirty-second of an inch. Grade two braille dots are spaced one-tenth of an inch on center within each cell with a one-twentieth of an inch space between cells. Letter heights measure one inch high with overall sign dimensions of six inches high by four-and-a-half to five-and-a-half inches wide, positioned with a centerline between three-eighths of an inch minimum and half an inch maximum above finish floor. Mechanical mounting utilizes vandal-resistant fasteners, while an adhesive mounting system is provided when attached to glazing.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
