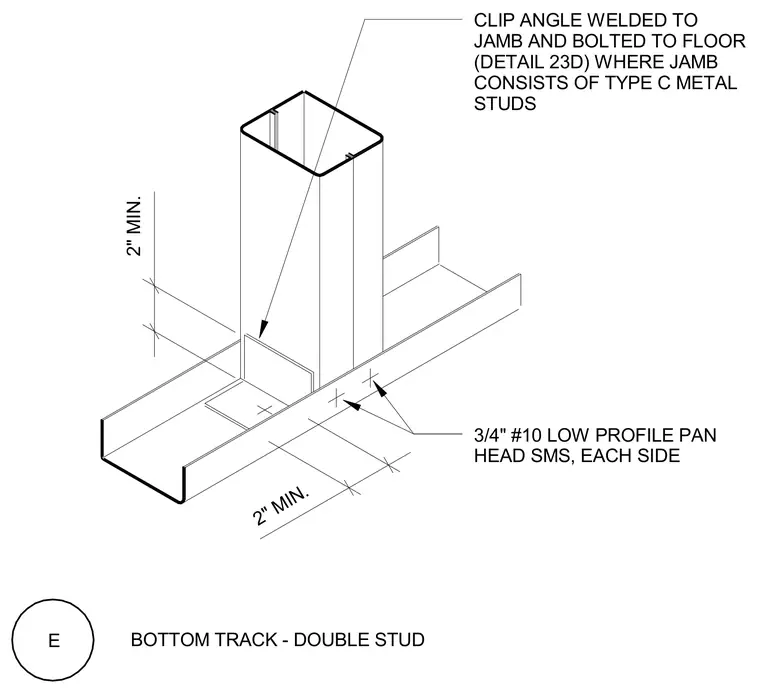

A clip angle is welded to the jamb and bolted to the floor where the jamb consists of type C metal studs. The double stud jamb connects to the bottom track using three-quarter-inch number ten low profile pan head sheet metal screws on each side, maintaining a two-inch minimum spacing.
CLIP ANGLE WELDED TO JAMB AND BOLTED TO FLOOR (DETAIL 23D) WHERE JAMB CONSISTS OF TYPE C METAL STUDS 3/4" #10 LOW PROFILE PAN HEAD SMS, EACH SIDE 2" MIN. 2" MIN. E BOTTOM TRACK - DOUBLE STUD
